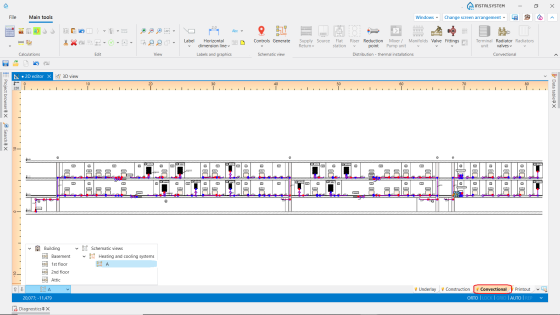

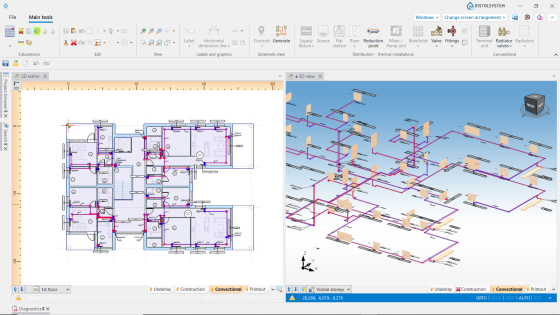

سیستم گرمایشی رادیاتور همرفتی در یک ساختمان مسکونی

تعریف پروژه

این مقاله شامل فایل پروژه نمونه یک سیستم ساده گرمایش با رادیاتور در یک ساختمان مسکونی می‌باشد.

Project files How to calculate downloaded file?	Initial state, isproj Heating system with convective radiators, isproj
Designed with	InstalSystem 5 rev 24.2
Required modulesT/>	ماژول پایه سیستم‌های گرمایشی سایزینگ رادیاتورها
Project range	Heating with convective radiators
Used catalogues	PEX/AL/PE-RT system (pipes and fittings) Brass, cast iron and steel fittings Neutral radiators catalogue Miscellaneous fittings any manufacturer Standard insulation catalogue Neutral valves catalogue - typical design
Type of building	residential building with basement 3-storey
Building structure	Underlay basement, dwg Underlay floor, dwg Underlay attic, dwg
Drawings range	Plan view
Prepared by	www.instalsoft.com
Legal disclaimer	The whole file or parts of the project may be copied
Calculation results	Complete range of calculation results, xls Complete range of available printouts, pdf Heating calculation results, pdf Bill of materials, pdf
Drawing results	Ground floor, dwg Ground floor, pdf
